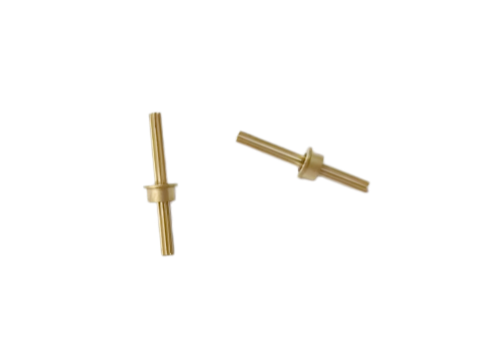

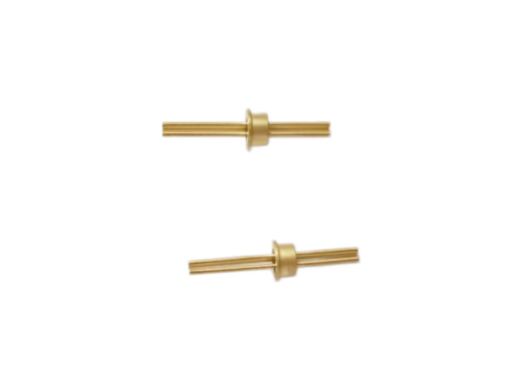

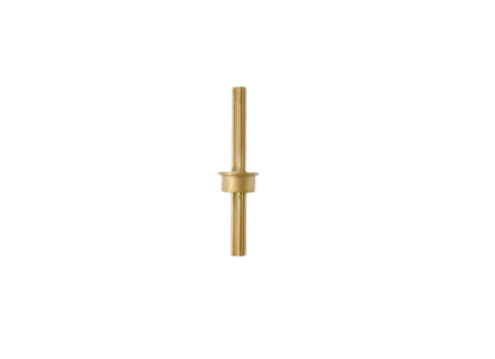

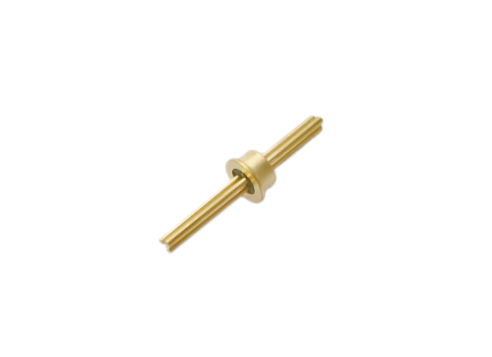

Helium Leak Less Than 1X10 -8 MbrlS AT 1 ATM Glass-Metal Seals Offering Right Angle Connector Orientation for Vacuum Integrity Solutions

Product Description:

Our Glass To Metal Seals are engineered to provide exceptional hermetic sealing solutions, combining advanced materials and precise manufacturing techniques to ensure superior performance in demanding applications. Utilizing the innovative glass-metal sintering process, these seals offer outstanding reliability and durability by creating a robust bond between glass and metal components.

One of the most critical features of our Glass To Metal Seals is their exceptional helium leak rate, which is less than 1x10 ^-8 mbar.l/s at 1 ATM. This ultra-low leak rate guarantees a hermetic seal that effectively prevents the ingress or egress of gases, making these seals ideal for use in vacuum systems, aerospace, medical devices, and other applications where maintaining a controlled environment is essential.

The core of the sealing process is the glass-metal sintering technique, a sophisticated method that involves heating specific glass materials and metals to create a permanent, high-strength bond without compromising the integrity of either component. This process ensures that the seal maintains its hermetic properties even under extreme temperature variations and mechanical stresses, providing long-term reliability.

Our Glass To Metal Seals utilize ELAN #88 as the glass material. ELAN #88 is specially formulated to offer excellent thermal expansion compatibility with various metals, minimizing stress at the interface and preventing seal failure over time. This compatibility is crucial for maintaining the structural integrity of metal-to-glass bond seals, particularly in environments subject to thermal cycling and mechanical vibration.

The seal type for these products is hermetic, ensuring that the seals are airtight and leak-proof. Hermetic seals are vital in applications where any leakage could compromise system performance or safety. Our Glass-Metal Seals are designed to maintain their hermeticity throughout the product’s lifecycle, even under harsh operating conditions.

Additionally, the pins in our Glass To Metal Seals are gold plated, providing excellent corrosion resistance and superior electrical conductivity. The gold plating also enhances the durability of the seal pins, preventing oxidation and ensuring consistent performance over time. This feature is particularly important for applications in electronics and instrumentation where reliable electrical connections are critical.

Metal-to-Glass Bond Seals produced through our proprietary glass-metal sintering process represent a synergy of material science and precision engineering. These seals are widely used in various industries, including aerospace, telecommunications, medical devices, and industrial sensors, where hermetic sealing and reliability are paramount.

To summarize, our Glass To Metal Seals offer a combination of low helium leak rates, advanced glass-metal sintering technology, high-quality ELAN #88 glass material, hermetic sealing, and gold-plated pins. This combination ensures that these seals provide exceptional performance, durability, and reliability for a wide range of critical applications. Whether you require a dependable hermetic seal for vacuum equipment, electronic packaging, or high-performance sensors, our Glass-Metal Seals deliver the quality and precision necessary to meet and exceed your expectations.

Features:

• Product Name: Glass To Metal Seals
• Hermetic Seal Type: Glass-to-Metal
• Connector Orientation: Straight, Right Angle
• Helium Leak Rate: Less Than 1X10^-8 Mbr.l/S AT 1 ATM
• Number Of Contacts: 3
• Pin Finish: Gold Plated
• High-quality Metal-Glass Bond Seals ensuring reliable hermetic sealing
• Durable Metal-to-Glass Seals for enhanced mechanical strength and leakage prevention
• Advanced Glass Seal Connectors designed for superior electrical performance and longevity

Technical Parameters:

Applications:

The SSCore Glass-to-Metal Seals, model number 41-X1085, are precision-engineered components designed for a wide range of industrial applications requiring reliable and durable metal-glass bond seals. Certified under IATF16949, these seals ensure high-quality standards and performance, making them ideal for critical environments where airtight and robust sealing is essential. With a minimum order quantity of just 5 pieces and a competitive price range of 10 to 40 ￥ per unit, they offer excellent value for manufacturers and engineers alike.

These Glass-to-Metal Seals utilize advanced glass-metal sintering technology, combining high-quality 4J29 pin materials with ELAN #88 glass materials to achieve superior bonding strength and thermal stability. The product is available with connector orientations in both straight and right-angle configurations, and features a mounting screw style connector, facilitating versatile installation options across different applications.

Packaged in vacuum packaging to ensure protection from contamination and damage during transit, the SSCore 41-X1085 model guarantees longevity and reliability upon delivery. With a supply capacity of 50,000 pieces per month and a delivery time of 7 to 14 working days, SSCore is well-equipped to meet the demands of high-volume production schedules. Payment terms are flexible, including L/C, D/A, T/T, and D/P, providing convenience for global customers.

The Glass-to-Metal Seals from SSCore are widely used in scenarios such as aerospace instrumentation, medical devices, vacuum electronics, and sensor technology, where the integrity of the metal-glass bond seals is critical to overall device performance. Their resistance to thermal expansion mismatch and excellent electrical insulation properties make them suitable for harsh environments, including high temperature and high-vacuum conditions. Whether integrated into vacuum tubes, hermetic feedthroughs, or electronic packages, these seals provide unmatched durability and reliability.

In summary, the SSCore Glass-to-Metal Seals (model 41-X1085) stand out for their quality, precision, and adaptability in various demanding applications. Their metal-glass bond seals ensure consistent performance, making them a preferred choice for industries requiring dependable sealing solutions under challenging operational scenarios.

Customization:

SSCore offers customized Glass To Metal Seals designed to meet your specific requirements. Our model 41-X1085 is certified under IATF16949, ensuring top-quality standards for every product. With a minimum order quantity of just 5 pieces, we provide flexible purchasing options at a competitive price range of 10 - 40 ￥ per unit.

Our Glass-Metal Seals feature hermetic glass-to-metal seal technology using ELAN #88 glass materials, guaranteeing exceptional durability and reliability. The hermetic seal type ensures a helium leak rate of less than 1x10^-8 mbr.l/s at 1 ATM, making them ideal for high-performance applications.

We offer Metal Seal Connectors in both straight and right-angle connector orientations to suit various design needs. Each unit is carefully packaged in a vacuum package to maintain product integrity during transit.

With a supply ability of 50,000 pieces per month and a delivery time of 7 to 14 workdays, SSCore is equipped to handle large-scale orders promptly. Payment terms include L/C, D/A, T/T, and D/P for customer convenience.

Trust SSCore for reliable Metal-Glass Seals that combine advanced technology with customizable options tailored to your project specifications.

Support and Services:

Our Glass To Metal Seals are engineered to provide reliable and durable hermetic sealing solutions for a wide range of applications, including electronics, aerospace, and automotive industries. These seals offer excellent resistance to thermal cycling, mechanical stress, and corrosive environments, ensuring long-lasting performance and integrity.

For technical support, our team of experts is available to assist with product selection, customization, and troubleshooting to meet your specific application needs. We provide detailed product specifications, material compatibility information, and guidance on assembly and testing procedures to ensure optimal seal performance.

Our services include custom design and manufacturing to accommodate unique size, shape, and performance requirements. We also offer prototyping and low-volume production runs to support product development and testing phases.

To ensure quality and reliability, all Glass To Metal Seals undergo rigorous inspection and testing, including leak testing, mechanical strength evaluation, and thermal cycling assessments. We are committed to delivering products that meet stringent industry standards and customer expectations.

For ongoing support, we provide comprehensive documentation, application notes, and technical bulletins. Our customer service team is ready to assist with order processing, delivery schedules, and after-sales service to ensure a seamless experience from purchase to implementation.
